Roof structure documentation

Data Acquisition

Laserscanning
  scanner: Z+F imager 5006i
  resolution @ object: 3 mm
  nr. scanning pos: 13
  nr. of points: 520 mio.

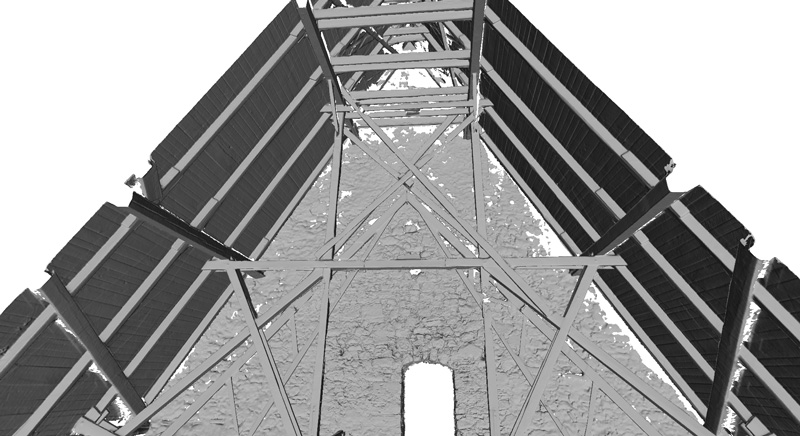

Documentation Model

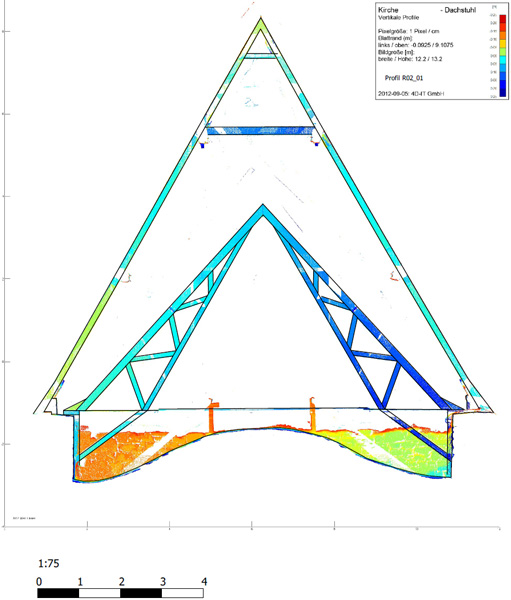

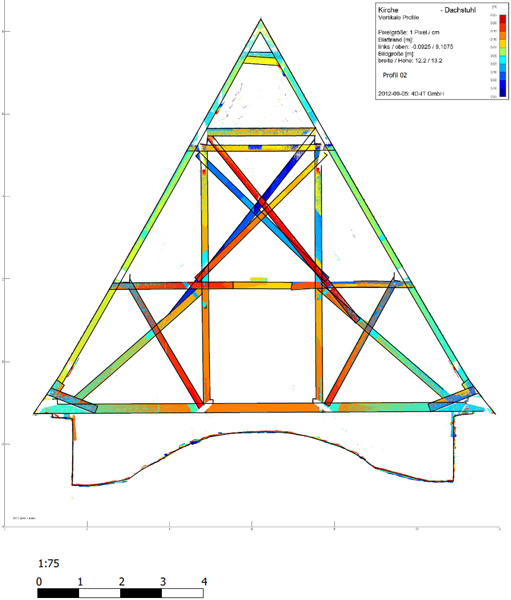

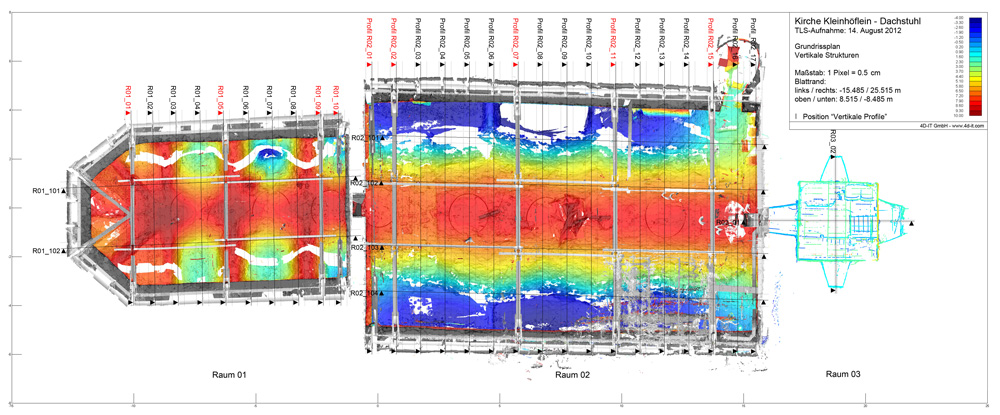

Based on laser scanning and tachymetric measuments, floor maps and numerous profiles have been determined semi-automatically for a documentation of the current status of the roof structure.
